3SPArea 4M

The modular smoking space provides superior air filtration and is ideal for larger groups of simultaneous smokers.
An exclusive smoking experience for larger groups. Our high-quality technology performs to protect the atmosphere around you from harmful gases, particles and foul odors. Transform any area with our unique design, making a lasting impression on your clients, guests, and employees.

Products / Indoor Smoking Area

3SPArea 4M

The modular smoking space provides superior air filtration and is ideal for larger groups of simultaneous smokers.
An exclusive smoking experience for larger groups. Our high-quality technology performs to protect the atmosphere around you from harmful gases, particles and foul odors. Transform any area with our unique design, making a lasting impression on your clients, guests, and employees.

Key Features of our 3SPArea 4M Indoor Smoking Room

Door Type
Recommended Areas of Application
Smokers and non-smokers can remain in the same room since the advanced filtration provides a comfortable, smoke-free atmosphere. allowing people to interact and socialize without being hindered by unpleasant smells or the health risk of secondhand smoke.
The smoking cabin can accommodate up to 24 smokers at once, however the space can be expanded by adding additional modules. The size starts at 20.1 m2. The SP Series units are often placed alongside walls.
Benefits
Installing a smoking cabin has numerous benefits. The provision of clean air and the removal of smoke in the air are the two primary advantages. Our smoke cabins also allow shorter smoking breaks, due to their brilliant location. Energy efficiency is another promise of our smoking cabins. All things considered, our smoking cabins help save time and money while also providing a sense of exclusivity and satisfaction.
Why installing a smoking cabin also makes commercial sense?
  • Health and Safety Air Quality

  • Flexible and Modular unit

  • Hustle-Free Installation and Operation

  • Efficient Performance Filtration system

  • Heavy-Duty

  • Lifelong Performance Guarantee

The technology behind the solution

1 - 2

In order to create a smoke-free environment, the smoke must be controlled, and this is where our clever technology steps in. Before the smoke has a chance to escape the cabin, our filtration system captures the smoke, allowing the gases to move through our filter.

2 - 3

Our filtration system ensures that even the smallest particles are eliminated. The dangerous gases and smoke pass through the filtration-system and afterwards reappear as clean and breathable air. Pollutants continue to be held captive in the filters. Regular maintenance will ensure that the system always functions efficiently.

4

Ash and cigarette ends can be disposed in the aluminum ashtray inside the cabin.

The technology behind the solution

1 - 2

In order to create a smoke-free environment, the smoke must be controlled, and this is where our clever technology steps in. Before the smoke has a chance to escape the cabin, our filtration system captures the smoke, allowing the gases to move through our filter.

2 - 3

Our filtration system ensures that even the smallest particles are eliminated. The dangerous gases and smoke pass through the filtration-system and afterwards reappear as clean and breathable air. Pollutants continue to be held captive in the filters. Regular maintenance will ensure that the system always functions efficiently.

4

Ash and cigarette ends can be disposed in the aluminum ashtray inside the cabin.

TECHNICAL INFORMATION

Model 3SPArea 4M Indoor Smoking Area
Dimensions (W x H x D) – Weight incl. filters
3200 x 5400 x 2200 mm - ≅ 1930 kg
Main housing material
Frame housing: Steel SPCC 1.5 mm
Front: Medium Density Fiberboard (MDF)
Main housing colors
Frame housing: Powder coated steel RAL 9005 (Black) or RAL 9006 (Grey) Other colors are optional.

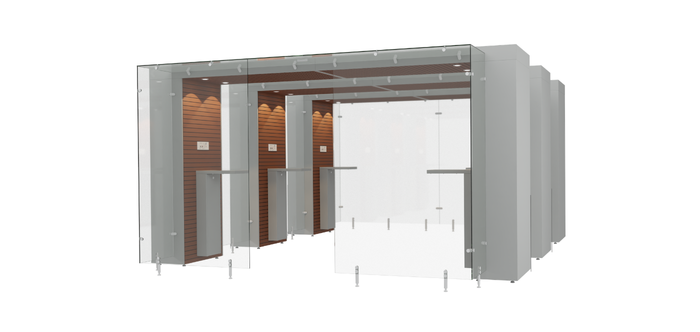

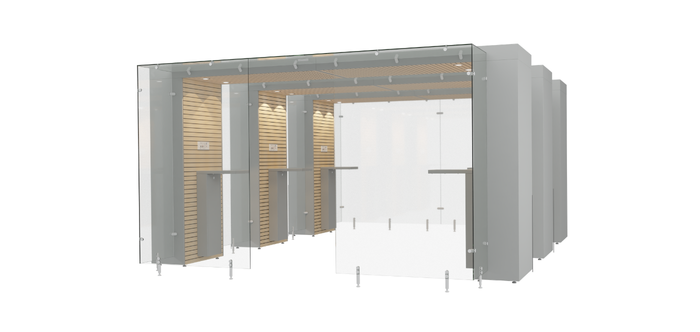

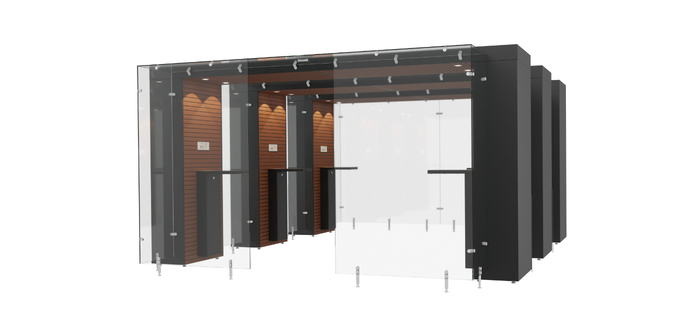

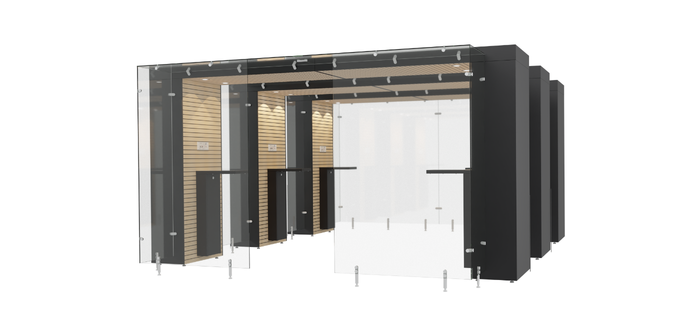

Wooden Panel: Mahogany, Maple, White, Black
Glass
8 mm tempered glass
Simultaneous smokers
Up to 24 persons
Certification
CE – According to DIN EN 13823, DIN EN 1364-1 – Tested and approved by BGIA, ISO 9001 and ISO 14001
FEATURES
Adjustability
Variable airflow speeds for stand-by and running modes.
Power saving
Sensor activation by entrance into the cabin reduces power consumption.
Modular construction
Easy to reduce or expand cabin size. Freestanding and movable.
Variable door solutions

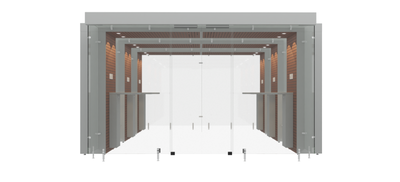

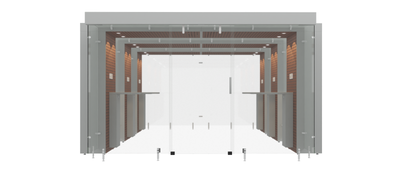

Manual, Automatic Door Systems.
Customization
Colors, LED screen, ramp, stickers, bottom profile set, laminated glass. (to personalize your customization, kindly consult our sales representative team)
